Connecting GX2200 VHF/AIS to Garmin Chartplotter

Over the past week, we installed a Standard Horizon GX2200 VHF with AIS receiver and hooked it up to show AIS targets on our Garmin 541s chartplotter.

The GX2200 is a DSC-capable VHF with an internal GPS antenna (this makes DSC distress calls automatically include the GPS position – an important feature in and of itself) and also AIS receiver. If you install it in a location that blocks the internal GPS, it can also use an external GPS antenna or GPS position information from the chartplotter. Like most Standard Horizon models, you can also add a remote microphone at a second location (generally the helm).

I’ve had questions about how to do this, so here it is. From the little bit of looking at the owners manuals for other models of Garmin chartplotters, many will be the same or very similar but if you have any questions you will have to call the Garmin tech support and/or Standard Horizon tech support (SH seems to have info on connecting to many chartplotter models).

Make Sure AIS Works on the Radio

Begin by installing the radio — power and antenna hookups only — and verify that it works both as a VHF and that you can see the AIS information on the radio display. Hopefully there will be some boats transmitting AIS signals near you so that you can see them.

If you are connecting a remote microphone (RAM) you can do it now or later. The big thing is to know that the radio is receiving AIS signals before proceeding. There aren’t any settings or anything to change on the radio for this but if you’re not getting AIS hits on the radio, you won’t be able to get them on the chartplotter!

OVERVIEW

There are three steps to connect the VHF to the chartplotter for AIS/DSC display:

  • Wiring
  • Change/confirm settings on radio
  • Change/confirm settings on chartplotter

We are using the internal GPS for the radio, so I did not have to hook up an external GPS. However, the basic principles are the same for that wiring. For those wires, however, the chartplotter (or external antenna) will be the transmitter and the radio the receiver. Just as with the AIS/DSC wires, you are likely to have to change settings on both the radio (if using its output) and chartplotter.

Got a Raymarine chartplotter? For info on connecting the radio to a Raymarine chartplotter, read these directions that Mike McCollough left in the comments.

WIRING

The GX2200 uses NMEA 0183, not NMEA 2000, so you have to find the NMEA 0183 wires from the back of your chartplotter. On ours, they are in a wire bundle with the power wires — positive and negative — for the chartplotter. They are thin little wires in a variety of colors. [I think that if you have NMEA 2000 connected to your chartplotter, there is some way to connect NMEA 0183 devices into the NMEA 2000 wiring but I don’t know any details. This post is just about straight NMEA 0183 wiring.]

The easiest way to do the wiring — and the way I did it — is to use one wire for both AIS and DSC, instead of separate wires. Now, I say “one wire” but really it is a wire pair — one being positive and one negative. [NOTE: You can separate the AIS and DSC and use a pair of wires for each — according to Standard Horizon there is no advantage to doing so and means that you have to run twice as much wire.]

The important thing to know is that Garmin uses the power ground wire (yeah, the black wire of the red-and-black power wires) as the NMEA 0183 ground as well.

Turn off the power to the chartplotter and VHF before doing any wiring.

So here’s the wiring to do it as I did:

  • Connect the thin GRAY wire from the VHF (they call it the NMEA DSC Output positive) to EITHER the BROWN (Port 1) or VIOLET (Port 2) wire on the chartplotter (these are the NMEA input positive wires). Before deciding to use Port 2, make sure on your chartplotter that it can be configured to use NMEA High Speed data (on some models — such as the 3210 — only Port 1 can be configured for high speed).
  • Connect the thin BROWN wire from the VHF (NMEA DSC Output negative) to the BLACK wire coming from the chartplotter (in addition to being the power negative, this is the NMEA 0183 negative). There are many ways to tap into a wire like this, but I simply cut the black coming from the chartplotter and used a butt connector with black and brown on one side and the other black on the other side.

Three of these wires — the gray and brown from the VHF and the brown or violet from the chartplotter — are really thin. To make good connections, I strip 1/2″ (instead of the normal 1/4″) off these and then fold the bare wire over on itself before putting the connector on and crimping it. I use shrink tubing over all connectors.

NOTE: Since the VHF and chartplotter are about 5 feet apart as the crow flies but 20-ish as the wire snakes, I got some 20/2 boat instrument wire to run between the two. It’s a red/black pair, which makes it easy to keep the pos/neg connections straight. So, from the VHF to the chartplotter it was actually gray-red-violet (I used Port 2) and brown-black-black.

RADIO SETTINGS

When combining the DSC and AIS signals using the gray and brown wires only, you have to tell the radio to use 38400 baud on these wires (AIS data needs the higher baud rate; DSC doesn’t care). If you don’t do this, the VHF will only transmit DSC data to the chartplotter.

Directions for doing this are on page 94 of the GX2200 manual, but basically:

Turn on the radio. Hold Call Menu until Setup Menu appears. Rotate channel knob to General Setup, press Select. Rotate channel knob to NMEA Data In/Out and press Select. Rotate channel knob to 38400 and press Enter. Press Quit twice to get back to main screen.

GARMIN CHARTPLOTTER SETTINGS

There are four settings that you must change or confirm on the Garmin chartplotter. On most models, they can all be found under Home/Configure (check the owners manual for your chartplotter as to exactly where these are and how to access):

  • Turn on the chartplotter.
  • Under Communications: Go to either Port 1 (if you used the BROWN wire on the chartplotter) or Port 2 (VIOLET wire) and set it to NMEA High Speed.
  • Under Other Vessels:
    • AIS — turn ON
    • DSC — turn ON
    • AIS Alarm — set alarm range and time to.
      • Range: If a vessel will come within this distance of you, you want to know.
      • Time To: Sound the alarm this amount of time before the vessel is at the specified range.  In other words, if you said that you want to know if a vessel will come within 1 mile of you, and here you said 5 minutes, it will sound an alarm 5 minutes before the vessel gets to that 1-mile mark (assuming constant speed and course).

TEST

Check on the radio that there is a boat within range that is transmitting an AIS signal. You may need to increase the AIS range. Note approximately where the boat is.

How to connect a Standard Horizon GX2200 VHF with GPS and AIS receiver to a Garmin chartplotter. Wiring and device settings.

Then bring up a chart of the area on the chartplotter. Adjust range as necessary so that it includes where the transmitting boat is.

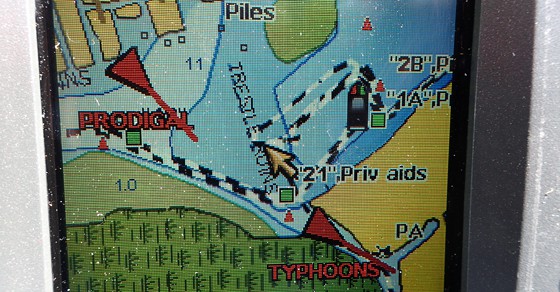

You should see it on the chartplotter. On ours, boats that are not a threat are shown as green triangle outlines. Boats that are a potential danger appear as a solid red triangle with their direction of travel shown as a line. Boat names are shown for both (when you first turn the radio on, it can take several minutes for names to appear in place of MMSI numbers).

How to connect a Standard Horizon GX2200 VHF with GPS and AIS receiver to a Garmin chartplotter. Wiring and device settings.

On ours — admittedly an older unit with a smaller screen — information about the vessel appears on a separate screen. I move the cursor with the 4-way rocker to the vessel and then press select.

If we need to call one of the vessels, it’s easiest to just do it from the AIS screen on the radio — go to the list, select the boat and press call. This is all shown on the RAM mic that we have at the helm.

BUYING THE GX2200

The GPS Store has had some good deals on the radio and they have excellent customer service — that’s where we bought ours. You can also buy them on Amazon and most other chandeleries.

The Boat Galley makes a tiny bit on sales through Amazon, but frankly The GPS Store is cheaper and has much better customer service and tech support. I recommend The GPS Store.
